New

ROOFWALK SAFE

ROOFWALK Walkway System for Metal Roofs

ROOFWALK and ROOFSTEP provide permanent and secure access to your roof. ROOFWALK and ROOFSTEP enable you to reach your solar panels and airconditioners for inspection on the roof - safely even in bad weather conditions.

With ROOFWALK you meet all the requirements of the relevant norms for safe access routes :

  • Minimum width 500 mm

  • Anti Slip Test R11

  • Fall protection



ROOFWALK has been tested according to DIN EN 516 class 1 und class 2 and is CE certified.

The System can be mounted on metal roofs up to a slope of  42°.

ROOFWALK is available in different versions and adjustable to specific conditions.

ROOFWALK Safety according to DIN 4426 and DIN EN 516

ROOFWALK GARDCO -  walkway with railing on one or both sides

ROOFWALK SAFE  - walkway with fall arrest system - tested according to DIN EN 516 - 2

Do you have questions regarding our walkways or the different versions? Don't hesitate to contact us

Walkways perfectly matched to your roof

ROOFWALK is individually planned and dimensioned for each project, so that we can adapt it to your wishes and needs and ensure the highest possible cost efficiency.The possiblity to mount ROOFWALK parallel to the standing seem as well as vertical to the standing seem gives us the necessary flexibility for the planning process.

To be able to reach the other end of the roof even if there are obstacles such as tubes, pipes and cables, ROOFWALK has been combined with small bridges and stairs.

The modularity of the system also allows us to vary in orientation and width or even create platforms when needed

We offer support and advice concerning the planning and the adaption of ROOFWALK to the needs and details of each single project:

  • individual planning and consulting for every object

  • precise part lists

  • shipping according to the part list

ROOFSTEP

Over 20° slope we recommend the walkway with stairs, over 30° it is a legal requirement. ROOFSTEP has been designed as a component to ROOFWALK to fulfill these demands.

ROOFSTEP is adjustable from 5° bis 55° with stairs of 250mm. Like ROOFWALK it can be mounted independant from the seam distance of the metal roof.

ROOFSTEP is tested according to DIN 516 and CE certified like ROOFWALK. ROOFSTEP meets the requirements for chimney sweepers according to DIN 18160-5.

Further funtions and applications

IIf you need electricity or data connections on your roof, a cable management can be added to the walkway.

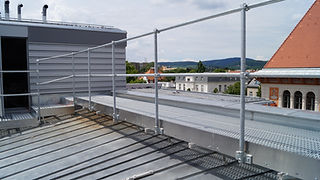

To increase safety you can add a guardrail along side ROOFWALK – with safety doors if required.

A foot bar can prevent tools and screws from falling.

The roof of the main railway station in Salzburg needed to be accessible for maintenance. To fit in architects concept of a round parabolic white roof ROOFWALK was delivered powder coated in white.
